Custom Baseball Cap Boxes
Custom baseball cap boxes that hold the crown up and the brim flat, from 100 units. A cap that ships loose arrives creased; ours sits on a crown form inside a box shaped to the brim, in a retail two-piece for the shelf or a corrugated version that goes straight in the mail.
A cap is a shape, and the box has to keep it one
- Board
- 18–24 pt SBS or kraft for retail; E-flute corrugated for the shipping box
- Sizes
- 9 × 8 × 5.5 in for a structured cap; custom to crown height and brim length
- Crown form
- Paperboard ring, domed form, or tissue pad; fitted-size rings
Get a price for Baseball Cap Boxes
Send the size and quantity — we reply the same working day with a price, a dieline and a date. Artwork optional at this stage.
- Free dielineThe flat drawing comes with the quote, before you commit.
- Proof before pressNothing is printed until you have seen it laid on the dieline.
- Die kept for reordersTooling is paid once. Every reorder skips straight to press.
- Quoted in four marketsUS, UK, Canada and Australia, in the delivery currency.

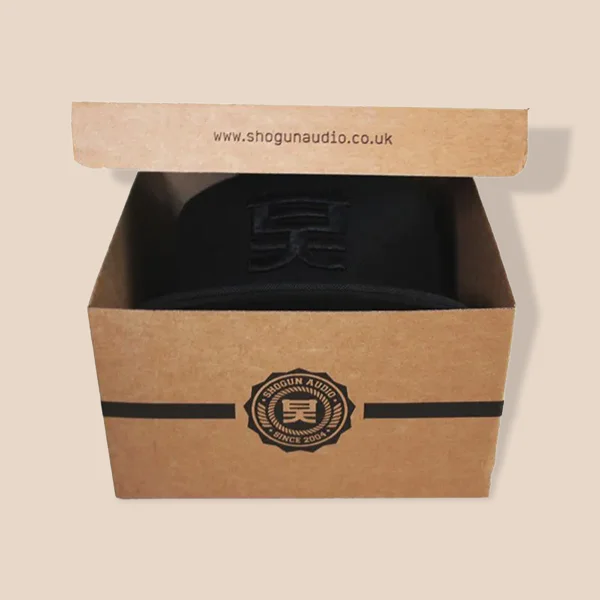

Crown up, brim flat
The crown is held by a paperboard form — a folded dome or a ring — that the cap sits over so the panels cannot collapse. The brim lies in a channel at the front of the box, flat against the floor, or curved on a shaped platform if the cap is sold pre-curved. Box height is the crown height plus a half inch; box length is the crown depth plus the brim, which is why a cap box is longer than it looks like it should be.
| Structured cap, flat brim | 9 × 8 × 5.5 in, crown ring, flat brim channel |
|---|---|
| Structured cap, curved brim | 9 × 7.5 × 5.5 in, crown ring, curved brim platform |
| Unstructured or dad cap | 8 × 7 × 4 in, folded flat with a tissue crown pad |
| Two caps | 9 × 8 × 10 in, stacked on two rings, or side by side in a wide box |
Retail box, or the one that ships

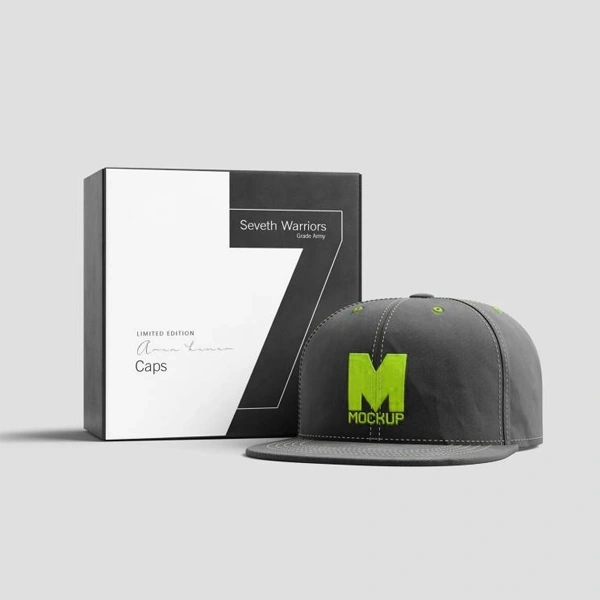

On a shelf the cap box is a two-piece with a lift-off lid or a hinged lid with a window, in paperboard, printed for the brand. In the mail it is a corrugated box with the same crown form inside and an ear-lock or tuck-top lid, built to be the shipping carton — the construction on our ear lock mailer boxes with a locking lid page, with the form added. Most cap brands run both, and the crown ring is the same part in each.
A window in the lid over the front panel of the cap shows the logo embroidery, which is what a cap is bought on. Put it over the crown front, not the brim.
The crown form, three ways
- A folded paperboard ring the crown sits over — cheapest, ships flat, holds a structured cap.
- A domed paperboard form for a premium box, which fills the crown fully.
- A tissue-stuffed crown for an unstructured cap that has no shape to keep.
- For a fitted cap, the ring is sized to the fitted size so the sweatband is not stretched.
Print, and the shelf
Cap boxes on a shelf sit lid-up and end-out, so the end panel carries the size and the colorway, and the lid carries the brand. A kraft two-piece with a one-color logo suits a streetwear brand; a black box with a foil logo suits a team or a premium line. The garment box logic on our shirt boxes for folded apparel page applies to the lid and base; the difference here is the height and what is inside.
Baseball Cap Boxes — specification
The rows that are specific to this build first, then what applies to every job we run. Anything not listed is a question, not a limit — send the brief.
This build
- Board
- 18–24 pt SBS or kraft for retail; E-flute corrugated for the shipping box
- Sizes
- 9 × 8 × 5.5 in for a structured cap; custom to crown height and brim length
- Crown form
- Paperboard ring, domed form, or tissue pad; fitted-size rings
- Brim
- Flat channel or curved platform
- Styles
- Two-piece lift-off, hinged lid with window, ear-lock or tuck-top mailer
- Minimum
- 100 boxes
On every job
- Print process
- Digital below about a thousand, offset above it. One side or both, with spot colors where a match has to hold.
- Color
- CMYK as standard. Uncoated and kraft stocks print lighter and warmer; a spot color is the only exact match.
- Tolerance
- Cutting plus or minus 1 mm, creasing plus or minus 0.5 mm, confirmed on a plain sample before the run.
- Tooling
- A cutting die per size, made once and kept. Foil and emboss dies per artwork, also kept.
- Food contact
- Food-grade board and inks where the carton touches food, with the interior left plain.
- Sustainability
- Mono-material board wherever the product allows; recycled-content and FSC stocks; no claim printed the pack does not earn.
- Artwork
- Vector PDF or AI, 3 mm bleed, 4 mm safe area, fonts outlined. We check every file and send a proof before press.
- Dieline
- Supplied free with the quote, before you commit. Yours whether or not you order.
- Sample
- A plain unprinted sample at the finished size on request, for fit and construction.
- Reorders
- Skip the tooling and go straight to press at a lower unit price.
- Lead time
- Quoted with the price against your fill date rather than promised before we have seen the spec.
- Markets
- United States, United Kingdom, Canada, Australia — priced in the delivery currency, freight included.
Boards and films we build baseball cap boxes on
A folding carton is one sheet of board, so the board is the product. These are the stocks we run for cartons, what each is good at, and where it lets you down.
Natural kraft
Unbleached folding board. Warm, hides marks, costs least. Mutes color — one or two flat colors print well, photographs do not.
250–350gsm sleeves; 14–24pt cartonsWhite SBS
Solid bleached sulfate: bright, coated, the retail carton standard. Takes accurate color and every finish. Shows scuffs sooner than kraft.
14–24ptWhite lined chipboard
A recycled gray core under a white printing face. Cheaper than SBS and slightly duller; the back of the sheet stays gray.
16–24ptKraft-look coated
A kraft face over a coated inner. The natural look with a barrier behind it — the answer where oil, grease or moisture would mark plain kraft.
14–20ptRecycled-content board
Post-consumer fiber with a gray-brown cast. Right for outers and inner components; poor for bright whites and photography.
16–22ptMicro-flute E and F
A fine corrugated layer where a carton needs structure it cannot get from board — a large panel, a heavy product, a box that ships alone.
E 1.5 mm; F 0.8 mmUncoated and textured
No clay coat, or a linen or laid grain. Print reads softer and warmer; a deboss goes deeper. Photographs do not sit well on it.
280–350gsmMetallised and pearlescent
A metallic or pearl face for a shelf that needs to catch light. Costly, and it fights a photograph — a mark or a pattern suits it better.
16–20ptNot sure which? Say what goes in it and where it is sold — the material follows from that. Our notes on recycled, recyclable and compostable cover which claims each stock can honestly carry.
- 01
Send what you have
A dimension, a photograph beside a ruler, or the product itself. No technical drawing needed — that part is ours.
- 02
We quote and draw
A price, a dieline and a date come back together. If a different build would suit the product better, that is in the reply too.
- 03
Approve the dieline
The flat drawing is yours to check: which panel is the front, where the folds fall, how deep the cavity really is.
- 04
Artwork on the dieline
You place your design on the flat we sent, or we place it for you, and you see a proof before anything goes to press.
- 05
A sample if you want one
A plain unprinted sample at the finished size shows fit and construction — the things a drawing cannot.
- 06
Cut, printed, shipped
The die is cut once and kept, so every reorder skips the tooling and goes straight to press at a lower unit price.
Format
Vector PDF or AI where possible. Raster artwork at 300dpi at final size, in CMYK.
Bleed
3 mm past every trim line, so a fraction of drift on the cutter never leaves a white edge.
Safe area
Keep type and anything important 4 mm inside the cut and away from every fold.
Color
Convert to CMYK before sending. Uncoated stock prints lighter; a spot color is the only exact match.
Fonts
Outline them or supply the files. A missing font substitutes silently and the proof will not match.
Barcodes
On a light, matte, unvarnished patch with the quiet zone clear — a code on gloss fails the scanner.
Not set up that way? Send it anyway — fixing a file is a short conversation, and we check every one before press. Our guide to preparing print files covers each point.
Every finish here is a decision about light on a shelf, not about luxury.
Matte lamination
Reads considered, hides marks, takes a ballpoint.
Gloss lamination
Lifts color; glares under shop lighting.
Soft-touch
Velvet in the hand; shows fingerprints in a bag.
Hot foil
Real metal leaf — the most reliable premium signal.
Emboss / deboss
Shape with no ink; works in the dark.
Spot UV
Gloss shapes on a matte field.
Uncoated kraft
Warm, natural, mutes color.
Textured stock
Texture in the paper; cannot scuff off.
Not sure which suits the shelf it sells from? Say where the product is sold and we suggest one — our notes on specialty finishes show them on real boxes.
Sizing a folding carton so the die comes out right: baseball cap boxes
Measure the product, not the box it is in now. A carton is built around what has to fit inside it, assembled — cap on, lid fitted, folded if it folds — at its widest point in each direction. Send those three numbers and say which is which.
- Length x width x height
- Internal, always. External dimensions include the board and are what the carrier measures, not what the product needs.
- Clearance
- 2–3 mm a side for a snug fit; more where an insert or void fill goes in. A carton cut exactly to the product is slow to pack and transmits every knock.
- Board thickness
- Heavier board takes internal space from the product. It matters most on small boxes, where four walls of 24pt is a real share of the cavity.
- Varies between batches?
- Glass, textiles, molded parts and cured soap all do. Measure several and build to the largest.
- Cutting tolerance
- Plus or minus 1 mm on folding board. Confirmed on a plain sample before the run.
- Units
- Metric or imperial, as long as you say which. Mixing them in one spec is where mistakes happen.
Not sure your numbers are right? Send the product dimensions rather than the box dimensions and we work the box out — the full method is in our guide to measuring for a box.
Interactive · five steps · no sign-up
Build your Baseball Cap Boxes in 3D
Pick a shape, type a size, choose a board and a finish. The preview on the left redraws as you go, and the spec lands with us exactly as you set it.
Frequently asked questions
Got a question about baseball cap boxes? The answers below cover what we get asked most. If yours is not here, send it with a brief, message us on WhatsApp, or call +1 503-461-4788 — we reply the same working day.
Will the cap keep its shape?
Yes — the crown sits over a paperboard ring or dome so the panels cannot collapse, and the brim lies flat in its own channel. That is the point of a cap box.
What size box for a standard cap?
About 9 × 8 × 5.5 in for a structured cap with a flat brim. A curved brim shortens the box slightly; a dad cap folds into a smaller one.
Can I ship in it?
Yes, in the corrugated version with a locking lid and the same crown form. The retail paperboard box goes inside a mailer.
Can I have a window?
Yes, in the lid over the crown front, so the embroidery shows. Not over the brim.
Does it work for a fitted cap?
Yes — the ring is sized to the fitted size so the sweatband is not stretched in the box.
Can it hold two caps?
Yes, stacked on two rings in a tall box, or side by side in a wide one.
Does the box ship flat?
Yes, the box and the ring are die-cut and fold flat. The domed form is a separate part that also folds.
Kraft or printed?
Kraft with a one-color logo for streetwear; black with foil for a team or premium line. Both are common.
Is it recyclable?
Yes, box and form are plain paperboard or corrugated. A window film is the one part to leave out if that matters.
What is the minimum order?
100 boxes. The box and the crown ring are die-cut and reuse the same dies on reorder.
How long does production take?
It depends on the style and the quantity. We give a date with the quote rather than a number before we have seen the spec.
Will you send a sample?
An unprinted box with the crown ring, so you can box your cap and check the fit before print.
