Custom Pen Boxes
Custom pen boxes from 100 — slim rigid drawer boxes, lift-off lid boxes and printed sleeves with a cradle cut to the pen, for engraved gifts, corporate pens and retail sets of one or two.
One pen, held still, in a box that opens like a small event
- Build
- Rigid box of wrapped grayboard: drawer and sleeve, or tray with lift-off lid
- Lighter option
- Printed cardstock sleeve with tuck ends over a paper tray
- Insert
- Die-cut foam, satin-covered platform, folded paper cradle, or a two-pen slot
Get a price for Pen Boxes
Send the size and quantity — we reply the same working day with a price, a dieline and a date. Artwork optional at this stage.
- Free dielineThe flat drawing comes with the quote, before you commit.
- Proof before pressNothing is printed until you have seen it laid on the dieline.
- Die kept for reordersTooling is paid once. Every reorder skips straight to press.
- Quoted in four marketsUS, UK, Canada and Australia, in the delivery currency.
A narrow box flexes unless it is rigid
A pen box is about six inches by two, and a folding carton that thin twists in the hand. That is why the gift format is a set-up box: chipboard wrapped in printed or textured paper, with walls that stay square when you pinch them. We build the two common forms, a drawer that slides out of an outer sleeve and a tray with a lift-off lid, and both get a thumb notch or a ribbon pull so the opening does not turn into a fight.
The wrap is where the brand lives. Soft-touch black with a blind deboss is the quiet default; a foil mark on a linen or leatherette paper is the louder one. Inside, the lining paper is chosen to sit against the pen without marking a lacquered barrel.

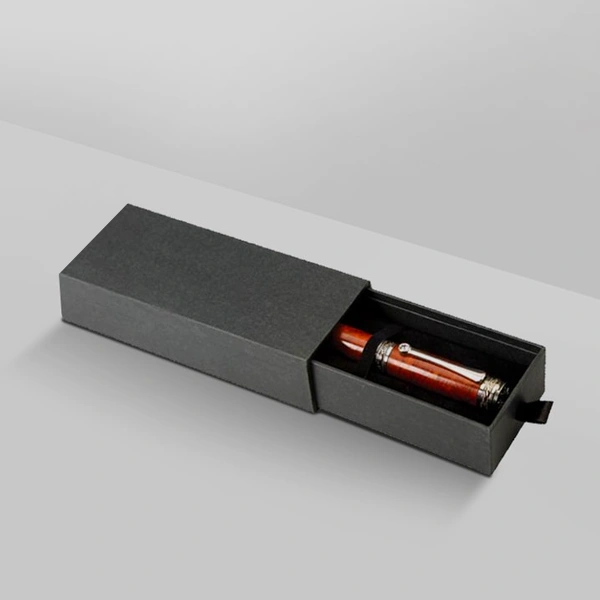

A drawer box has one more thing to get right than a lid box: the friction of the drawer. Too loose and the drawer slides out when the box is tipped; too tight and the recipient tugs and the sleeve tears at the corner. We set the fit so the drawer stays put upside down and comes out with one finger on the ribbon pull, and we test it on the actual wrapped stock, because a textured paper grips differently from a smooth one.
The cradle decides whether the pen rolls
| Die-cut foam | Firm, a slot cut to the barrel diameter; the usual choice for one pen |
|---|---|
| Satin-covered platform | A foam shape wrapped in satin with an elastic loop; the gift look |
| Folded paper cradle | A V-fold of cardstock glued into the tray; lightest and cheapest |
| Two-pen insert | Two parallel slots, with room for a refill or a cartridge box between them |
Sleeves and cartons for the lighter run
Not every pen needs a rigid box. Promotional pens in the hundreds go into a printed cardstock sleeve with a tuck end, or a sleeve over a plain tray, which holds the shape while costing a fraction of a wrapped box. The sleeve takes full-color print well, so a conference or launch edition can carry the event artwork and the pen can stay plain. For fountain pens we add a small card pocket for the converter and a warranty slip. Larger desk sets move into our boxes for complete stationery sets instead.
Sizing to the pen you actually sell
- Send the pen or its length and barrel diameter; a cradle cut half a millimeter under grips it.
- Capped length and posted length differ; the box is cut to the longer of the two.
- A wide-barreled rollerball needs a deeper tray than a slim ballpoint, or the lid presses on the clip.
- Clip height sets the lid clearance; a clip that touches the lid leaves a line on the lining.
- Leave room for an engraving plate or a card if the pen is personalized.
Engraving, corporate orders and retail
Corporate pen gifts ship in volume at one time of year and the box is often the only printed thing in the parcel, so we fit a sleeve or belly band that can carry a client logo over a stock box. Retail pens need a box that also sells on a shelf: a window in the lid or a clear acetate sleeve shows the pen, and a small hang tab on the sleeve lets it peg. A plain kraft version with a one-color mark suits a stationer or a refillable brand.
If the pen is engraved to order, the box is packed after engraving, so the cradle is cut with the engraving facing up when the lid opens. It is a small thing that the person unboxing notices and the person packing forgets, which is why the insert is marked with an orientation notch.
A pen box is cut to one pen. If you sell three barrel widths, the simplest route is one box with three cradle inserts rather than three boxes.
Pen Boxes — specification
The rows that are specific to this build first, then what applies to every job we run. Anything not listed is a question, not a limit — send the brief.
This build
- Build
- Rigid box of wrapped grayboard: drawer and sleeve, or tray with lift-off lid
- Lighter option
- Printed cardstock sleeve with tuck ends over a paper tray
- Insert
- Die-cut foam, satin-covered platform, folded paper cradle, or a two-pen slot
- Wrap and print
- Soft-touch, linen, leatherette or printed paper; foil, deboss, spot UV
- Sizing
- Cut to the pen length and barrel diameter you send
- Extras
- Ribbon pull, thumb notch, card pocket, lid window, hang tab on the sleeve
- Minimum
- 100 pen boxes per size
On every job
- Print process
- Digital below about a thousand, offset above it. Both sides as standard on cards, tags and leaflets.
- Color
- CMYK with spot colors for a brand match. Uncoated and cotton stocks print noticeably lighter than coated ones.
- Tolerance
- Trim plus or minus 1 mm guillotined, plus or minus 0.5 mm die-cut. Anything over about 170gsm is creased before folding.
- Tooling
- A die only where the piece is shaped, perforated or drilled, made once and kept. A plain rectangle needs none.
- Food contact
- Food-safe inks on menus and counter print that will be handled where food is served.
- Sustainability
- Uncoated and unlaminated stocks recycle without separation, and FSC papers are available across the range.
- Artwork
- Vector PDF or AI, 3 mm bleed, 4 mm safe area, fonts outlined. We check every file and send a proof before press.
- Dieline
- Supplied free with the quote, before you commit. Yours whether or not you order.
- Sample
- A plain unprinted sample at the finished size on request, for fit and construction.
- Reorders
- Skip the tooling and go straight to press at a lower unit price.
- Lead time
- Quoted with the price against your fill date rather than promised before we have seen the spec.
- Markets
- United States, United Kingdom, Canada, Australia — priced in the delivery currency, freight included.
Boards and films we build pen boxes on
Sheet print is judged in the hand more than a box is: the weight, the surface and whether a pen works on it. These are the stocks we run for cards, folders, leaflets and stationery.
Coated card 300–400gsm
The workhorse. Sharp full-color print, matte or gloss, laminated where it is handled. Does not take a pen unless the finish is matte.
300–400gsmUncoated card
No clay coat. Colors read softer and warmer, a deboss goes deeper, and it writes on with anything. Photographs lose punch.
300–400gsmCotton and textured card
Soft, thick and fibrous. Takes a deep blind deboss and reads as an invitation. Foil sits beautifully; four-color does not.
400–700gsmDuplexed card
Two sheets bonded, often with a colored core, for a very thick card with a visible colored edge. The heaviest thing we print.
600–900gsmText paper 100–170gsm
Leaflets, folder inners and booklet pages. Folds without cracking and takes a full-color print on both faces.
100–170gsmManila and kraft paper
Unbleached, tan, and cheap. One or two colors read well; white ink gives a light mark. Envelopes, folders and tags.
90–300gsmSynthetic stock
Polypropylene sheet for tags and cards that get wet, torn or handled outdoors. Prints like paper and does not soften.
200–400 micronBoard-backed
A printed face laminated to grayboard, for a rigid card, a folder back or a display that has to stand up on its own.
1–2 mm boardNot sure which? Say what goes in it and where it is sold — the material follows from that. Our notes on recycled, recyclable and compostable cover which claims each stock can honestly carry.
- 01
Send what you have
A dimension, a photograph beside a ruler, or the product itself. No technical drawing needed — that part is ours.
- 02
We quote and draw
A price, a dieline and a date come back together. If a different build would suit the product better, that is in the reply too.
- 03
Approve the dieline
The flat drawing is yours to check: which panel is the front, where the folds fall, how deep the cavity really is.
- 04
Artwork on the dieline
You place your design on the flat we sent, or we place it for you, and you see a proof before anything goes to press.
- 05
A sample if you want one
A plain unprinted sample at the finished size shows fit and construction — the things a drawing cannot.
- 06
Cut, printed, shipped
The die is cut once and kept, so every reorder skips the tooling and goes straight to press at a lower unit price.
Format
Vector PDF or AI where possible. Raster artwork at 300dpi at final size, in CMYK.
Bleed
3 mm past every trim line, so a fraction of drift on the cutter never leaves a white edge.
Safe area
Keep type and anything important 4 mm inside the cut and away from every fold.
Color
Convert to CMYK before sending. Uncoated stock prints lighter; a spot color is the only exact match.
Fonts
Outline them or supply the files. A missing font substitutes silently and the proof will not match.
Barcodes
On a light, matte, unvarnished patch with the quiet zone clear — a code on gloss fails the scanner.
Not set up that way? Send it anyway — fixing a file is a short conversation, and we check every one before press. Our guide to preparing print files covers each point.
Sheet print takes the widest range of finishes of anything we make.
Matte lamination
Soft, fingerprint-resistant, and it still takes a pen. The default on anything handled.
Gloss lamination
Maximum color depth. Shows every fingerprint and refuses a ballpoint.
Hot foil
Gold, rose gold, silver, holographic or a color. The block is small so the die is cheap.
Emboss and deboss
Deepest on uncoated and cotton stocks; shallow and prone to cracking on gloss coated.
Spot UV
A gloss shape on a matte laminate. Best on a dark ground where the contrast reads.
Edge paint and colored core
Color on the cut edge of a thick or duplexed card. Only seen when the card is picked up, which is the point.
Soft-touch
A velvet laminate on a cover or a folder. Marks on white; excellent on dark.
Uncoated and textured
No film at all. Writes on, debosses deeply, and reads as considered rather than cheap.
Not sure which suits the shelf it sells from? Say where the product is sold and we suggest one — our notes on specialty finishes show them on real boxes.
Sizing printed sheets, folds and the grain: pen boxes
A printed piece is specified flat and finished folded, and the difference between the two is where mistakes live. Send the finished size you want and we work back to the flat.
- Finished size
- The size after folding and trimming. A6, A5, A4, DL, US letter and legal are standard; anything else is cut on its own die.
- Bleed and safe area
- 3 mm of artwork past every trim edge, and nothing important within 4 mm inside it. The guillotine drifts by a fraction on every stack.
- Grain direction
- Paper folds cleanly along the grain and cracks across it. We set the grain to the fold, which is why a sheet is not simply cut from the biggest sheet available.
- Fold allowance
- On a roll fold or a gate fold, the inner panels are cut a millimeter or two shorter so the piece closes flat.
- Creasing
- Anything over about 170gsm is creased before folding. Without it the fold cracks and the coating flakes along the line.
- Trim tolerance
- Plus or minus 1 mm guillotined, plus or minus 0.5 mm die-cut.
Not sure your numbers are right? Send the product dimensions rather than the box dimensions and we work the box out — the full method is in our guide to measuring for a box.
Interactive · five steps · no sign-up
Spec your Pen Boxes
Pick a shape, type a size, choose a stock and a finish. The preview on the left redraws as you go, and the spec lands with us exactly as you set it.
Frequently asked questions
Got a question about pen boxes? The answers below cover what we get asked most. If yours is not here, send it with a brief, message us on WhatsApp, or call +1 503-461-4788 — we reply the same working day.
Do pen boxes come in a drawer style or a lid style?

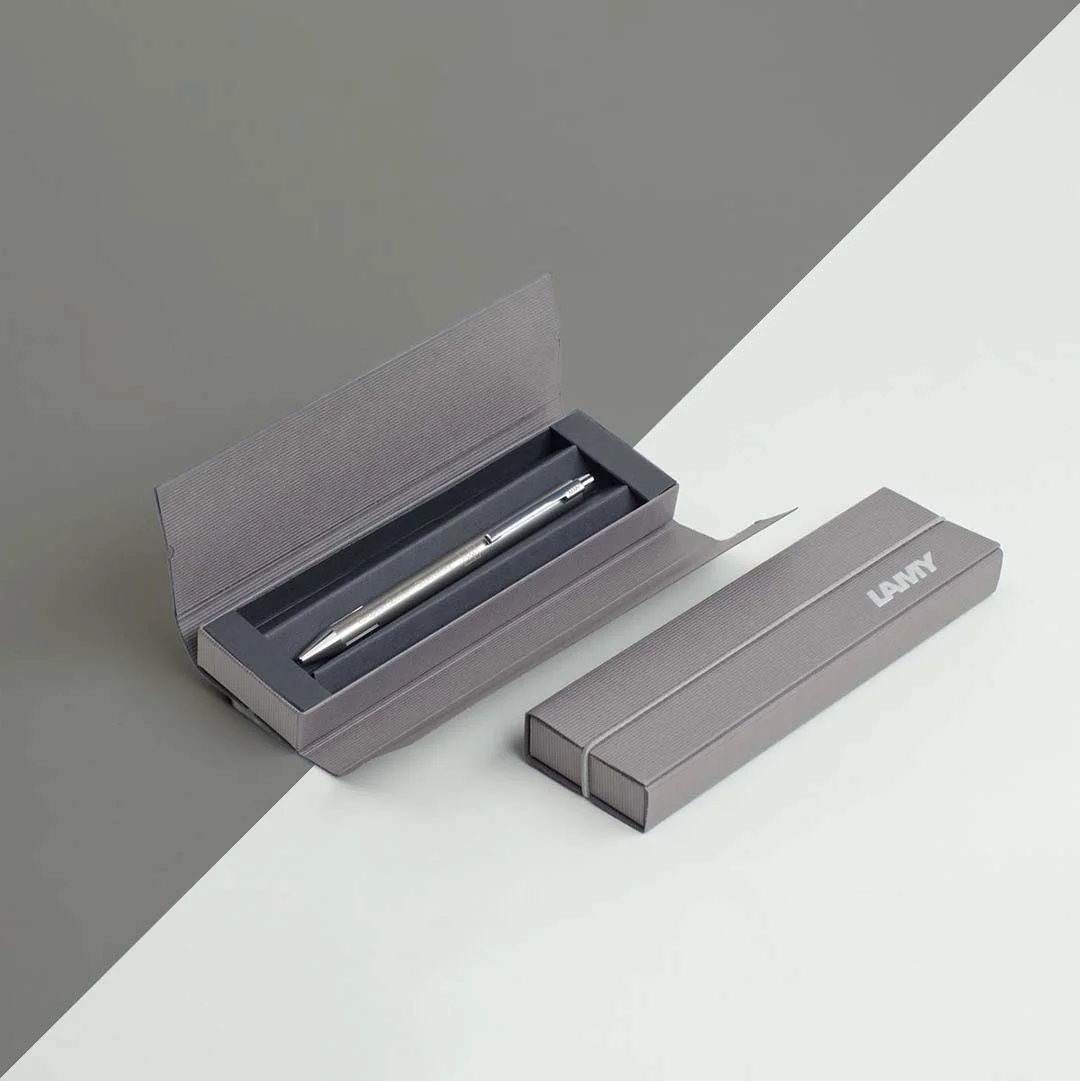

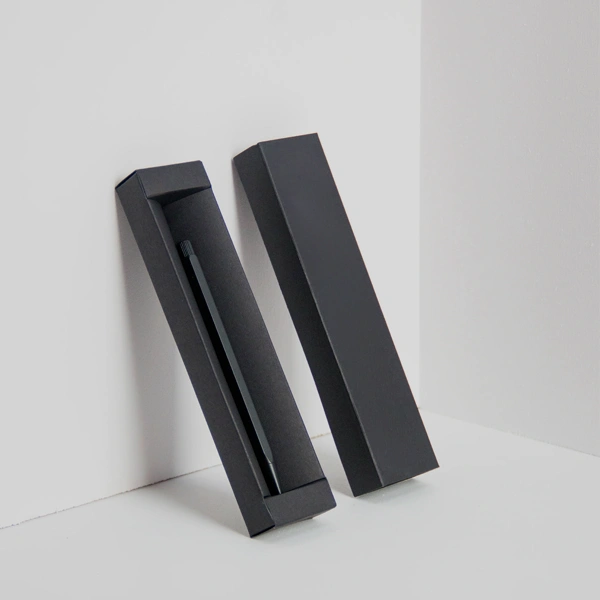

Both. The drawer slides out of a printed sleeve; the lid version is a tray with a lift-off top. The drawer feels more like a gift, the lid version is quicker to pack.
What stops the pen from rolling inside a pen box?
The cradle. A foam slot cut slightly under the barrel diameter, or a satin platform with an elastic loop, holds the pen still even when the box is shaken.

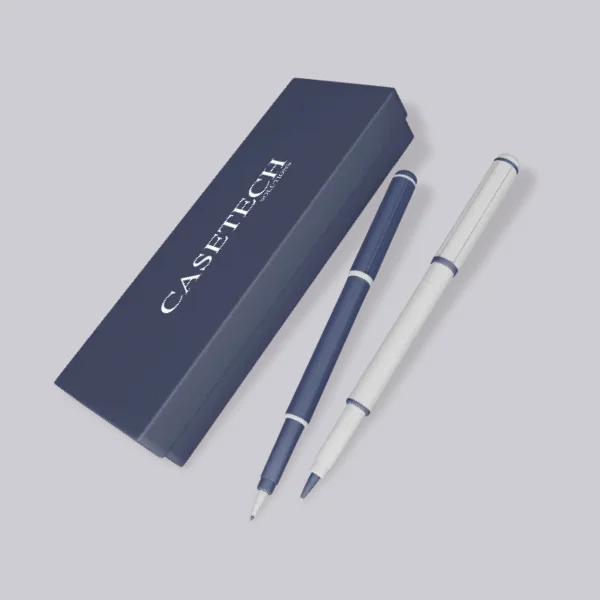

Can a pen box hold two pens?
Yes. A two-slot insert takes a pen and a pencil, or a pen and a refill, with a divider between them so the barrels do not touch.
Are pen boxes rigid or folding?
Gift pen boxes are rigid, because a folding carton that narrow twists. For promotional pens in quantity we also make a cardstock sleeve over a tray.
Can you fit a pen box to our specific pen?
Yes. Send the pen or its length and barrel diameter and we cut the tray, cradle and lid clearance to it, including room for the clip.
What finishes are available on a pen box?
Soft-touch or linen paper wraps with foil stamping, blind deboss or spot UV, and a choice of lining paper inside.
Can a pen box have a window so the pen shows in a shop?
Yes. A film window in the lid or a clear acetate sleeve over the box lets the pen show without opening it.
Do you make pen boxes for fountain pens with a converter?
Yes. A fountain pen box gets a small pocket or a second slot for the converter and cartridges, and a card slot for the warranty.
Can corporate pen boxes be branded for different clients?
A printed sleeve or belly band over a stock box carries each client logo, so one box stock serves many gifts.
Is a kraft pen box available?
Yes. A kraft-wrapped rigid box or a kraft cardstock sleeve with a one-color mark suits stationers and refillable pen brands.
How many pen boxes can we order at once?
From 100 per size. If you sell several barrel widths, one box with different cradle inserts is cheaper than several boxes.
