Custom End Closures Paper Tubes
Custom paper tubes chosen by their ends, from 100 — a crimped tinplate base, a black metal lid, a plastic plug for a poster tube, a paper disc for a plastic-free build, or a peel-off membrane that keeps powder in until the customer opens it.
The ends decide what a paper tube can carry
- Board
- Spiral-wound kraft chipboard, 1–3 mm wall
- Ends
- Crimped tinplate, metal slip lid, plastic plug, paper disc, peel-off membrane, sifter
- Liners
- Foil, greaseproof or plain inner ply, matched to the fill
Get a price for End Closures Paper Tubes
Send the size and quantity — we reply the same working day with a price, a dieline and a date. Artwork optional at this stage.
- Free dielineThe flat drawing comes with the quote, before you commit.
- Proof before pressNothing is printed until you have seen it laid on the dieline.
- Die kept for reordersTooling is paid once. Every reorder skips straight to press.
- Quoted in four marketsUS, UK, Canada and Australia, in the delivery currency.
End closure types compared
| Crimped tinplate end | Rolled onto the tube; flat, strong base; the classic paper-can look |
|---|---|

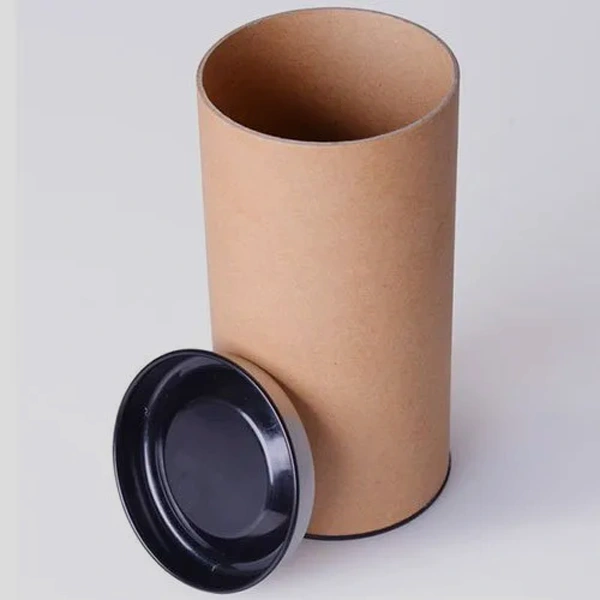

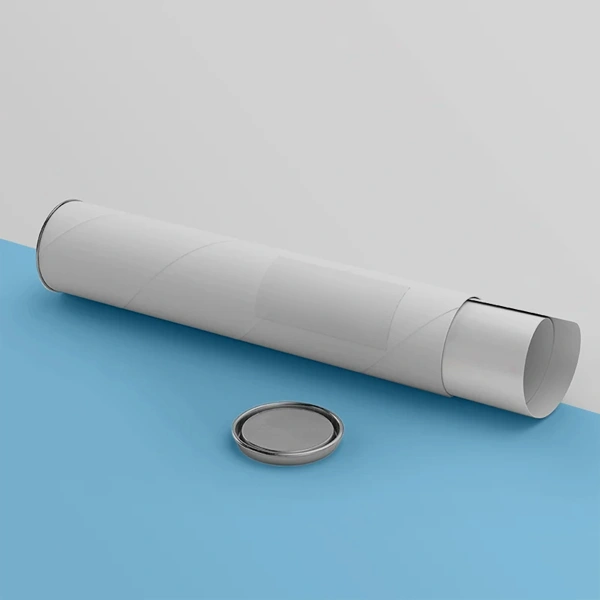

| Metal slip lid | Pressed metal cap over the tube; black, silver or gold |

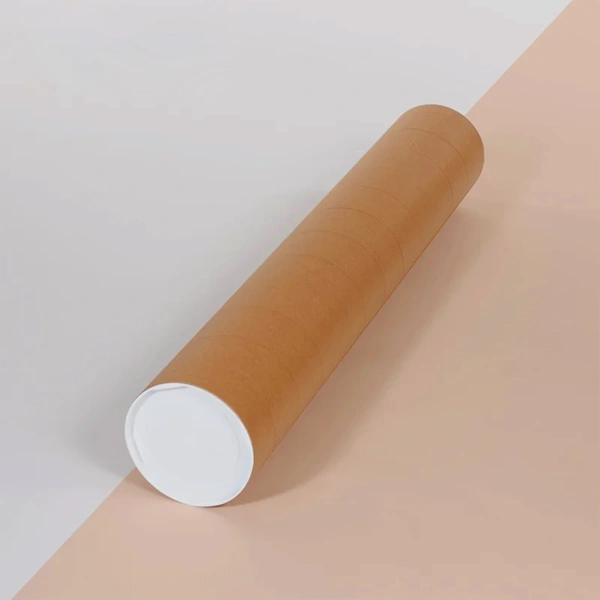

| Plastic plug | Snaps inside; reusable; poster and document tubes |
| Paper disc end | Board disc glued or crimped in; fully paper, curbside recyclable |
| Peel-off membrane | Foil seal under the lid; powders, coffee, snacks |
| Sifter or shaker top | Perforated insert with a turning cap; spices and seasonings |
Sealed ends for food and powder
A peel-off membrane is heat-sealed to the rim of the inner ply, so the tube is closed before the customer ever lifts the lid. Paired with a foil or greaseproof liner it keeps coffee, protein powder and snacks dry. The lid then becomes a reclose, not the seal. Ask us which liner matches your fill; a dry tea blend and an oily nut mix need different ones.
Ends for rolled and long items
Rolled prints and documents do not need a seal — they need ends that stay in when the tube is thrown into a mail sack. Plastic plugs with a ridge, or a crimped metal base at one end and a plug at the other, handle that. For poster sizes and bores, see our guide to heavy-wall shipping tubes by bore.
Plastic-free and mixed builds
- Paper disc at both ends, with a paper telescoping lid, for a tube with no plastic or metal.
- Metal base and paper lid for a flat, heavy base that does not tip on a shelf.
- Metal base and metal lid for a full paper-can look.
- Plug ends in kraft-colored or black plastic to match the wrap.
End Closures Paper Tubes — specification
The rows that are specific to this build first, then what applies to every job we run. Anything not listed is a question, not a limit — send the brief.
This build
- Board
- Spiral-wound kraft chipboard, 1–3 mm wall
- Ends
- Crimped tinplate, metal slip lid, plastic plug, paper disc, peel-off membrane, sifter
- Liners
- Foil, greaseproof or plain inner ply, matched to the fill
- Lid finish
- Silver, gold, black or printed metal; paper lid in any wrap
- Natural kraft, or full-color paper wrap with foil
- Sizes
- About 1–6 in across; length to the product
- Minimum
- 100 tubes
On every job
- Print process
- The tube itself is not printed. A wrap is printed offset as a flat sheet and applied, with the seam at the back.
- Color
- CMYK and spot colors on the wrap. Bare kraft takes one color directly, printed on the outer ply as the tube winds.
- Tolerance
- Diameter is fixed by the mandrel; length plus or minus 1 mm. Cap fit is set on a sample with a humidity allowance.
- Tooling
- The mandrel sets the diameter and is not a cost. Tooling is the wrap print and any foil die, made once and kept.
- Food contact
- A food-grade inner ply or a separate inner bag where the tube holds loose tea, coffee or confectionery.
- Sustainability
- The wound board and the paper wrap recycle as paper. Metal ends and plastic plugs are removed first.
- Artwork
- Vector PDF or AI, 3 mm bleed, 4 mm safe area, fonts outlined. We check every file and send a proof before press.
- Dieline
- Supplied free with the quote, before you commit. Yours whether or not you order.
- Sample
- A plain unprinted sample at the finished size on request, for fit and construction.
- Reorders
- Skip the tooling and go straight to press at a lower unit price.
- Lead time
- Quoted with the price against your fill date rather than promised before we have seen the spec.
- Markets
- United States, United Kingdom, Canada, Australia — priced in the delivery currency, freight included.
Boards and films we build end closures paper tubes on
A tube is wound rather than folded, so the wall is built up in layers of board on a mandrel. That gives it drum stiffness, and it means the internal diameter comes from a fixed set of mandrels.
Wound kraft chipboard
Strips of recycled board spiralled and glued. The tube body: strong in compression, recyclable as paper, and naturally brown.
1–3 mm wallLight wall, 1–1.5 mm
For retail tubes that travel inside a shipper — tea, cosmetics, candles. Keeps the tube light and the freight down.
1–1.5 mmHeavy wall, 2–3 mm
For tubes posted on their own: posters, plans, spirits. A thin-walled long tube arrives with a kink in the middle.
2–3 mmPrinted paper wrap
The tube is not printed directly. A printed label is wrapped around it in full color, with foil or emboss, and the seam sits at the back.
120–157gsmTinplate ends
Crimped metal base and lid. The traditional tea and gift tube; adds weight and a different sound when it opens.
CrimpedPlastic plugs
Snap-in ends for shipping and poster tubes. Reusable, removable, and the fit is what stops them pushing out under a stack.
Push-fitFood-grade liners
A laminated or greaseproof inner ply, or a separate inner bag, where the tube holds loose tea, coffee or confectionery.
Inner ply or bagShoulder and telescoping lids
A short second tube over the base, or an inner collar for a flush join. The join is the difference between a container and a gift.
Wound to matchNot sure which? Say what goes in it and where it is sold — the material follows from that. Our notes on recycled, recyclable and compostable cover which claims each stock can honestly carry.
- 01
Send what you have
A dimension, a photograph beside a ruler, or the product itself. No technical drawing needed — that part is ours.
- 02
We quote and draw
A price, a dieline and a date come back together. If a different build would suit the product better, that is in the reply too.
- 03
Approve the dieline
The flat drawing is yours to check: which panel is the front, where the folds fall, how deep the cavity really is.
- 04
Artwork on the dieline
You place your design on the flat we sent, or we place it for you, and you see a proof before anything goes to press.
- 05
A sample if you want one
A plain unprinted sample at the finished size shows fit and construction — the things a drawing cannot.
- 06
Cut, printed, shipped
The die is cut once and kept, so every reorder skips the tooling and goes straight to press at a lower unit price.
Format
Vector PDF or AI where possible. Raster artwork at 300dpi at final size, in CMYK.
Bleed
3 mm past every trim line, so a fraction of drift on the cutter never leaves a white edge.
Safe area
Keep type and anything important 4 mm inside the cut and away from every fold.
Color
Convert to CMYK before sending. Uncoated stock prints lighter; a spot color is the only exact match.
Fonts
Outline them or supply the files. A missing font substitutes silently and the proof will not match.
Barcodes
On a light, matte, unvarnished patch with the quiet zone clear — a code on gloss fails the scanner.
Not set up that way? Send it anyway — fixing a file is a short conversation, and we check every one before press. Our guide to preparing print files covers each point.
A tube is finished on the wrap, so anything a flat sheet takes, a tube takes.
Bare kraft
No wrap at all. The natural wound board, which is the look most brands choose it for.

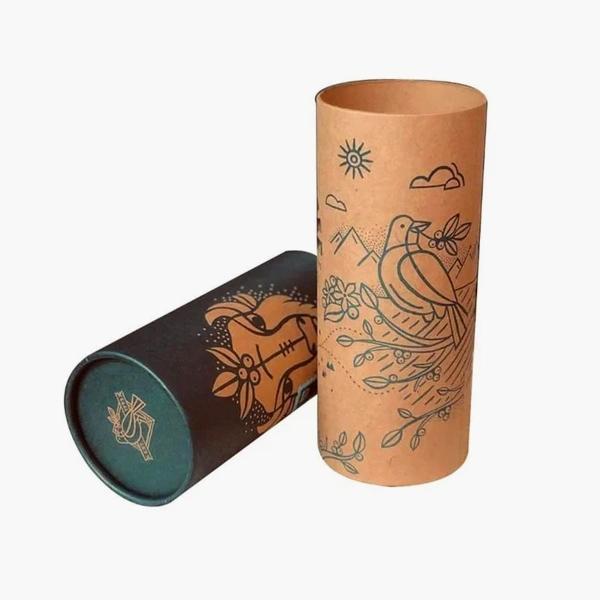

Printed wrap
Full color on a laminated paper applied round the tube, with the seam at the back.
Hot foil
On the wrap before it is applied, or on the lid top. Gold on kraft is the category signature.
Deboss on the wrap
Pressed after wrapping so the relief follows the curve.
Two-tone
One paper on the lid, another on the base. Reads as a deliberate design for almost nothing.
Metal ends
Tinplate base and lid. A different weight and a different sound when it opens.
Not sure which suits the shelf it sells from? Say where the product is sold and we suggest one — our notes on specialty finishes show them on real boxes.
Sizing a tube, where diameter comes in steps: end closures paper tubes
Length is cut to order, but the internal diameter is set by the mandrel the tube is wound on. Those come in roughly 5 mm steps, so we choose the first step above your product rather than an exact figure.
- Internal diameter
- The product at its widest plus 2–3 mm, rounded up to the next mandrel. Anything more and a round product rolls inside.
- Length
- The product plus the depth of a cap at each end, plus 3 mm. Cut to any figure.
- Wall thickness
- 1–1.5 mm inside a shipper, 2–3 mm for a tube that travels alone. It is the whole protection on a mailing tube.
- Cap fit
- Set on a plain sample. A cap a fraction loose falls out in the post; a fraction tight cannot be opened by hand.
- Outside size
- Carriers measure the outside including the caps — usually about 0.25 in over the bore, and an inch over the length.
- Inserts
- Round products still rattle. A board ring or a foam disc holds a jar or a bottle centered.
Not sure your numbers are right? Send the product dimensions rather than the box dimensions and we work the box out — the full method is in our guide to measuring for a box.
Interactive · five steps · no sign-up
Spec your End Closures Paper Tubes
Pick a shape, type a size, choose a wall and wrap and a finish. The preview on the left redraws as you go, and the spec lands with us exactly as you set it.
Frequently asked questions
Got a question about end closures paper tubes? The answers below cover what we get asked most. If yours is not here, send it with a brief, message us on WhatsApp, or call +1 503-461-4788 — we reply the same working day.
Which end closure is best for ground coffee in a paper tube?
A peel-off foil membrane on a foil-lined tube, with a paper or metal lid as the reclose.
Can a paper tube with end closures be fully plastic-free?
Yes. Paper disc ends and a paper lid make a tube with no plastic or metal in it.
What is a crimped metal end on a paper tube?
A tinplate disc rolled onto the tube edge. It gives a flat, strong base like a can.
Do plastic plug ends stay in during mailing?
Yes. Ridged plugs are fitted to the bore on a sample so they grip but still come out by hand.
Can the metal lid on an end-closure tube be colored?
Yes, silver, gold or black as standard, and printed metal for larger runs.
Can you fit a shaker top to a paper tube?
Yes, a perforated sifter insert with a turning cap, for spices and seasonings.
Can I mix a metal base with a paper lid?
Yes. A metal base keeps a tall tube from tipping, and a paper lid keeps the cost down.
Is a membrane-sealed paper tube tamper-evident?
It shows whether it has been opened, because the foil seal must be peeled. It is not child-resistant.
Which end closures are recyclable with the paper tube?
Paper discs go with the tube. Metal ends separate and recycle as metal; plastic plugs depend on local rules.
What is the minimum order for paper tubes with end closures?
100 tubes per size and end combination.
Do you fill and seal the membrane for me?
No. We supply membranes on the rim spec for your sealer, or fit them at the base end only.
