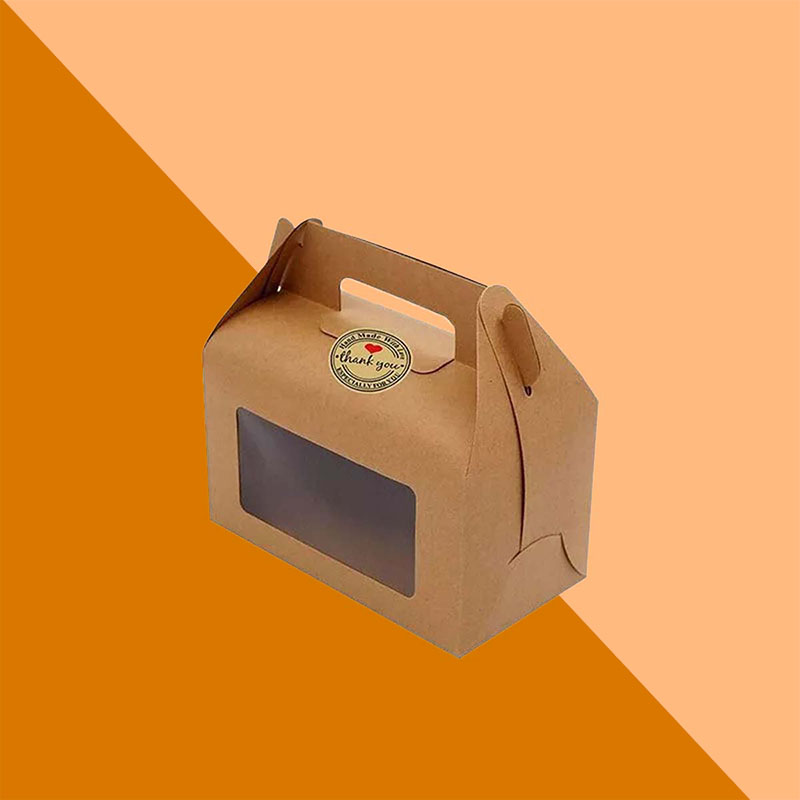

Custom Gable Boxes with Window
A gable box gives you a carton that stands on a counter, a handle that costs nothing because it is cut from the board, and — with a window — a view of what is inside. Very little else in packaging does three jobs from one blank.
- Build
- Gable-top carton with integral die-cut handle; locking base
- Board
- Food-grade kraft or white, 250–350gsm; heavier for weight
- Windows
- Open die-cut or filmed; 15 mm minimum board at each corner
Get a price for Gable Boxes with Window
Send the size and quantity — we reply the same working day with a price, a dieline and a date. Artwork optional at this stage.
- Free dielineThe flat drawing comes with the quote, before you commit.
- Proof before pressNothing is printed until you have seen it laid on the dieline.
- Die kept for reordersTooling is paid once. Every reorder skips straight to press.
- Quoted in four marketsUS, UK, Canada and Australia, in the delivery currency.
The handle is free and the window is not
The die-cut handle in a gable top is integral: no glue, no separate component, no weak joint where a handle is attached. That is why gable boxes carry more than a bag of similar weight.
A window is the opposite — it removes board from a wall that was carrying load. Keep it in the middle of a face with at least 15 mm at every corner, and the box behaves almost as though it were not there.
Never cut a window into the gable panels themselves. Those fold to form the handle and take the whole lifting force.
Filmed or open, on a food carrier
For hot food, open beats filmed. Trapped steam turns a pastry soggy and a fogged window hides the product, which defeats the reason for buying one.
| Open die-cut | Vents as well as shows; right for anything hot and crisp |
|---|---|

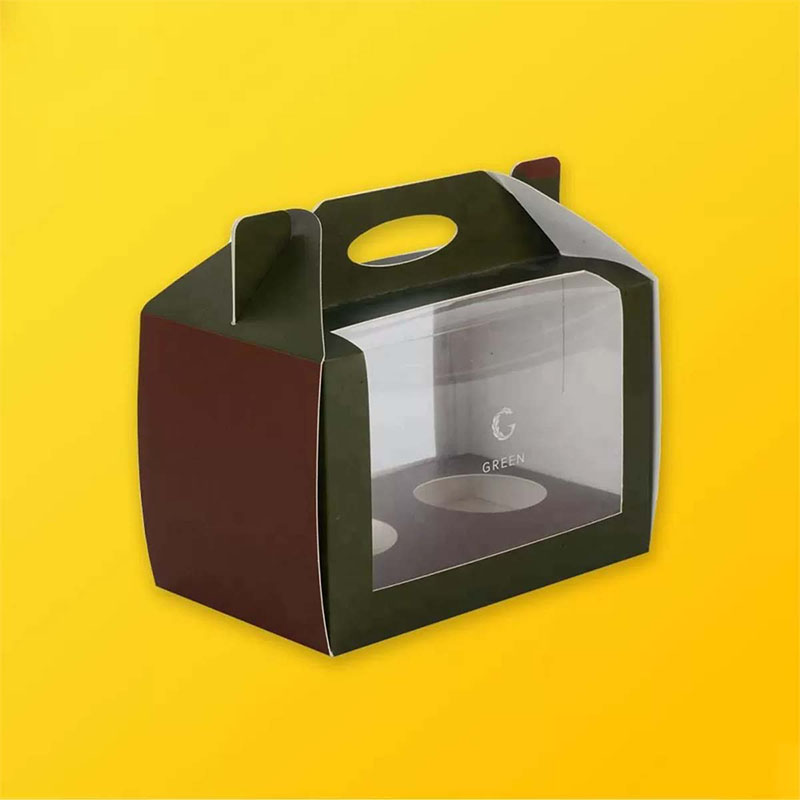

| Filmed window | Keeps dust and steam out; fogs on a hot product |
| No window | Strongest box; print does the selling |
| Window in the lid | Shows the top of the contents; weakens the handle area |
Size to the load, not the volume

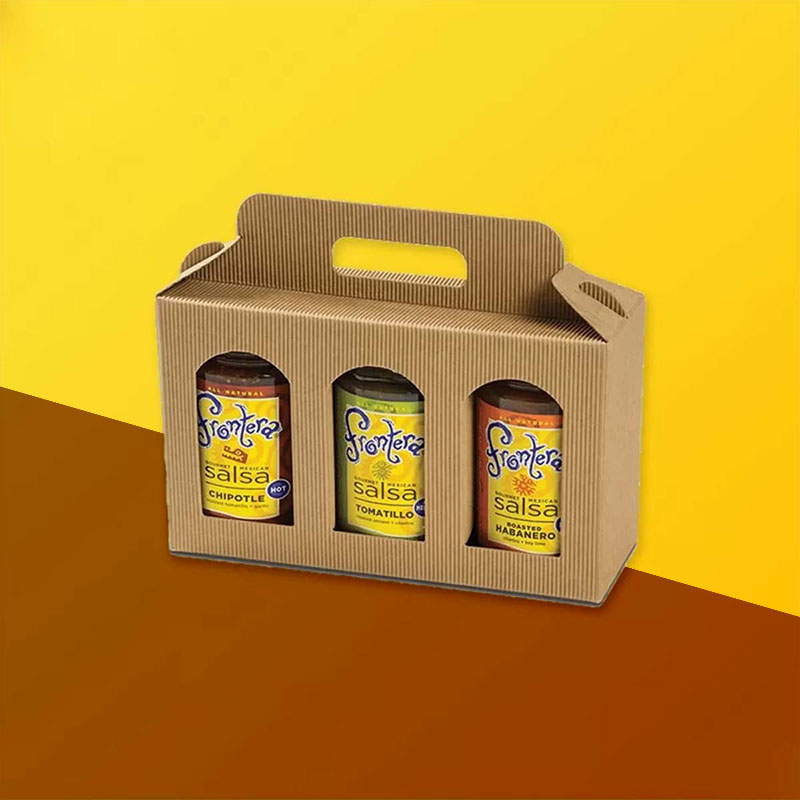

A gable box full of pastries and a gable box full of jars are the same shape and completely different jobs. The handle is fine either way; the base is not.
Tell us the heaviest thing the box will carry, in kilograms. It changes the board grade and the base build, and nothing else about the design — the carrier and handle reasoning is set out in our printed carrier notes.
It has to stand on a counter while being filled
- A gable box is filled open, standing, usually one-handed by someone in a hurry.
- A base that will not hold square makes that awkward and slows a queue.
- A locking base holds; a plain tuck base folds itself flat at the wrong moment.
- Flat-packed blanks assemble in a couple of seconds and store in almost no space.
What the window shows on a shelf
A gable box with a window is a strong retail unit as well as a carrier: it stands, it stacks badly but displays well, and the contents sell themselves through the opening.
For gift sets, hampers and food-to-go it is often a better answer than a flat carton, because the customer can pick it up by the handle and walk out without a bag.
Gable Boxes with Window — specification
The rows that are specific to this build first, then what applies to every job we run. Anything not listed is a question, not a limit — send the brief.
This build
- Build
- Gable-top carton with integral die-cut handle; locking base
- Board
- Food-grade kraft or white, 250–350gsm; heavier for weight
- Windows
- Open die-cut or filmed; 15 mm minimum board at each corner
- Sizing
- Base and board specified from the heaviest intended load
- Supply
- Flat-packed; folds up in seconds
- Minimum
- 100 boxes
On every job
- Print process
- Digital below about a thousand, offset above it. One side or both, with spot colors where a match has to hold.
- Color
- CMYK as standard. Uncoated and kraft stocks print lighter and warmer; a spot color is the only exact match.
- Tolerance
- Cutting plus or minus 1 mm, creasing plus or minus 0.5 mm, confirmed on a plain sample before the run.
- Tooling
- A cutting die per size, made once and kept. Foil and emboss dies per artwork, also kept.
- Food contact
- Food-grade board and inks where the carton touches food, with the interior left plain.
- Sustainability
- Mono-material board wherever the product allows; recycled-content and FSC stocks; no claim printed the pack does not earn.
- Artwork
- Vector PDF or AI, 3 mm bleed, 4 mm safe area, fonts outlined. We check every file and send a proof before press.
- Dieline
- Supplied free with the quote, before you commit. Yours whether or not you order.
- Sample
- A plain unprinted sample at the finished size on request, for fit and construction.
- Reorders
- Skip the tooling and go straight to press at a lower unit price.
- Lead time
- Quoted with the price against your fill date rather than promised before we have seen the spec.
- Markets
- United States, United Kingdom, Canada, Australia — priced in the delivery currency, freight included.
Boards and films we build gable boxes with window on
A folding carton is one sheet of board, so the board is the product. These are the stocks we run for cartons, what each is good at, and where it lets you down.
Natural kraft
Unbleached folding board. Warm, hides marks, costs least. Mutes color — one or two flat colors print well, photographs do not.
250–350gsm sleeves; 14–24pt cartonsWhite SBS
Solid bleached sulfate: bright, coated, the retail carton standard. Takes accurate color and every finish. Shows scuffs sooner than kraft.
14–24ptWhite lined chipboard
A recycled gray core under a white printing face. Cheaper than SBS and slightly duller; the back of the sheet stays gray.
16–24ptKraft-look coated
A kraft face over a coated inner. The natural look with a barrier behind it — the answer where oil, grease or moisture would mark plain kraft.
14–20ptRecycled-content board
Post-consumer fiber with a gray-brown cast. Right for outers and inner components; poor for bright whites and photography.
16–22ptMicro-flute E and F
A fine corrugated layer where a carton needs structure it cannot get from board — a large panel, a heavy product, a box that ships alone.
E 1.5 mm; F 0.8 mmUncoated and textured
No clay coat, or a linen or laid grain. Print reads softer and warmer; a deboss goes deeper. Photographs do not sit well on it.
280–350gsmMetallised and pearlescent
A metallic or pearl face for a shelf that needs to catch light. Costly, and it fights a photograph — a mark or a pattern suits it better.
16–20ptNot sure which? Say what goes in it and where it is sold — the material follows from that. Our notes on recycled, recyclable and compostable cover which claims each stock can honestly carry.
- 01
Send what you have
A dimension, a photograph beside a ruler, or the product itself. No technical drawing needed — that part is ours.
- 02
We quote and draw
A price, a dieline and a date come back together. If a different build would suit the product better, that is in the reply too.
- 03
Approve the dieline
The flat drawing is yours to check: which panel is the front, where the folds fall, how deep the cavity really is.
- 04
Artwork on the dieline
You place your design on the flat we sent, or we place it for you, and you see a proof before anything goes to press.
- 05
A sample if you want one
A plain unprinted sample at the finished size shows fit and construction — the things a drawing cannot.
- 06
Cut, printed, shipped
The die is cut once and kept, so every reorder skips the tooling and goes straight to press at a lower unit price.
Format
Vector PDF or AI where possible. Raster artwork at 300dpi at final size, in CMYK.
Bleed
3 mm past every trim line, so a fraction of drift on the cutter never leaves a white edge.
Safe area
Keep type and anything important 4 mm inside the cut and away from every fold.
Color
Convert to CMYK before sending. Uncoated stock prints lighter; a spot color is the only exact match.
Fonts
Outline them or supply the files. A missing font substitutes silently and the proof will not match.
Barcodes
On a light, matte, unvarnished patch with the quiet zone clear — a code on gloss fails the scanner.
Not set up that way? Send it anyway — fixing a file is a short conversation, and we check every one before press. Our guide to preparing print files covers each point.
Every finish here is a decision about light on a shelf, not about luxury.
Matte lamination
Reads considered, hides marks, takes a ballpoint.
Gloss lamination
Lifts color; glares under shop lighting.
Soft-touch
Velvet in the hand; shows fingerprints in a bag.
Hot foil
Real metal leaf — the most reliable premium signal.
Emboss / deboss
Shape with no ink; works in the dark.
Spot UV
Gloss shapes on a matte field.
Uncoated kraft
Warm, natural, mutes color.
Textured stock
Texture in the paper; cannot scuff off.
Not sure which suits the shelf it sells from? Say where the product is sold and we suggest one — our notes on specialty finishes show them on real boxes.
Sizing a folding carton so the die comes out right: gable boxes with window
Measure the product, not the box it is in now. A carton is built around what has to fit inside it, assembled — cap on, lid fitted, folded if it folds — at its widest point in each direction. Send those three numbers and say which is which.
- Length x width x height
- Internal, always. External dimensions include the board and are what the carrier measures, not what the product needs.
- Clearance
- 2–3 mm a side for a snug fit; more where an insert or void fill goes in. A carton cut exactly to the product is slow to pack and transmits every knock.
- Board thickness
- Heavier board takes internal space from the product. It matters most on small boxes, where four walls of 24pt is a real share of the cavity.
- Varies between batches?
- Glass, textiles, molded parts and cured soap all do. Measure several and build to the largest.
- Cutting tolerance
- Plus or minus 1 mm on folding board. Confirmed on a plain sample before the run.
- Units
- Metric or imperial, as long as you say which. Mixing them in one spec is where mistakes happen.
Not sure your numbers are right? Send the product dimensions rather than the box dimensions and we work the box out — the full method is in our guide to measuring for a box.
Interactive · five steps · no sign-up
Build your Gable Boxes with Window in 3D
Pick a shape, type a size, choose a board and a finish. The preview on the left redraws as you go, and the spec lands with us exactly as you set it.
Frequently asked questions
Got a question about gable boxes with window? The answers below cover what we get asked most. If yours is not here, send it with a brief, message us on WhatsApp, or call +1 503-461-4788 — we reply the same working day.
Does the window weaken the box?
In the middle of a face, barely. Never cut into the gable panels — those form the handle and take the lifting force.
Open window or film?
Open for hot food — it vents at the same time. Film for anything that needs dust kept out and is not steaming.
How much will it carry?
That depends on board and base, not the handle. Tell us the heaviest load in kilograms.
Do they arrive assembled?
Flat, and they fold up in a couple of seconds — most of why food businesses buy them by the hundred.
Can the window be in the lid instead of a side?
It can, but it weakens the handle area, which is under load every time the box is carried.
Is a gable box better than a bag for gifting?
For anything with weight or a rigid shape, yes — it stands, protects and looks intentional in a way a bag does not.
Does the window weaken the box?
In the middle of a face, barely. Never cut into the gable panels — those form the handle and take the lifting force.
Open window or film?
Open for hot food; it vents at the same time. Film for anything that needs dust kept out and is not steaming.
How much will it carry?
That depends on board and base, not on the handle. Tell us the heaviest load in kilograms and we specify to it.
Do they arrive assembled?
Flat, and they fold up in a couple of seconds. That is most of why food businesses buy them by the hundred.
